Material Details
- Technical Data Sheet: EN, FR, ES, DE, ZH
- Safety Data Sheet: EN, other languages
- Printing Profiles
Description
Ultrafuse ASA is a high-performance thermoplastic with similar mechanical properties as ABS. ASA offers additional benefits such as high outdoor weather resistance. The UV resistance, toughness, and rigidity make it an ideal material to 3D-print outdoor fixtures and appliances without losing its properties or color. When also taking into account the high heat resistance and high chemical resistance, this filament is a good choice for many types of applications.
Sustainability Check
Recycled Packaging
Generally recyclable
Benefits at a Glance
- UV stabilized
- Weather resistance
- Long life span
- Very tough
- Resistant to wear and tear
- Chemical resistance
Example Applications
- Outdoor use
- Functional prototypes
- Chemical environment
- Reasonable heat resistance
Material Properties
- Tensile Strength (MPa): 12.0 (ZX), 34.6 (XY)
- Flexural Modulus (MPa): 1041 (ZX), 1638 (XZ), 1733 (XY)
- Elongation at Break: 1.0 % (ZX), 4.5 % (XY)
- Impact Strength Izod notched (kJ/m2): 1.9 (ZX), 11.4 (XZ), 8.7 (XY)
- Impact Strength Izod unnotched (kJ/m2): 6.8 (ZX), 39.3 (XZ), 36.8 (XY)
- HDT @ 0.45 MPa: 101 oC
Printing Guidelines*
- Nozzle Temperature: 260-280 °C
- Build Chamber Temperature: Closed chamber, passively heated
- Bed Temperature: 100 - 120 °C
- Bed Material: Spray, PC adhesive
- Nozzle Diameter: ≥ 0.4 mm
- Print Speed: 30 -60 mm / s
*The product data is provided in good faith and represents typical properties based on our current knowledge and experience; these data are not to be construed as specification limits or mini- mum values. Product properties may be changed without notice. This document does not create any liability, warranty or guarantee of product performance. It is the buyer’s responsibility to determine the suitability of Ultrafuse® products for the intended application.
Next Steps
Standard Printing Profiles
Select your printer below to access your printer profile. Click here to learn more about how to work with printer profiles.
High Speed Printing Profiles
Get in touch
Do you have questions about our materials, technologies or services? Get in touch now!
More Ultrafuse® Engineering Filaments
Ultrafuse® PLA PRO1
PLA PRO1 is an extremely versatile, tough biobased PLA filament made for professionals.
Benefits at a Glance
- Speed: Reduce your printing time by 30% – 80%, (subject to printer/ object limitations)
- Strength: Excels overall beyond printed ABS in mechanical properties

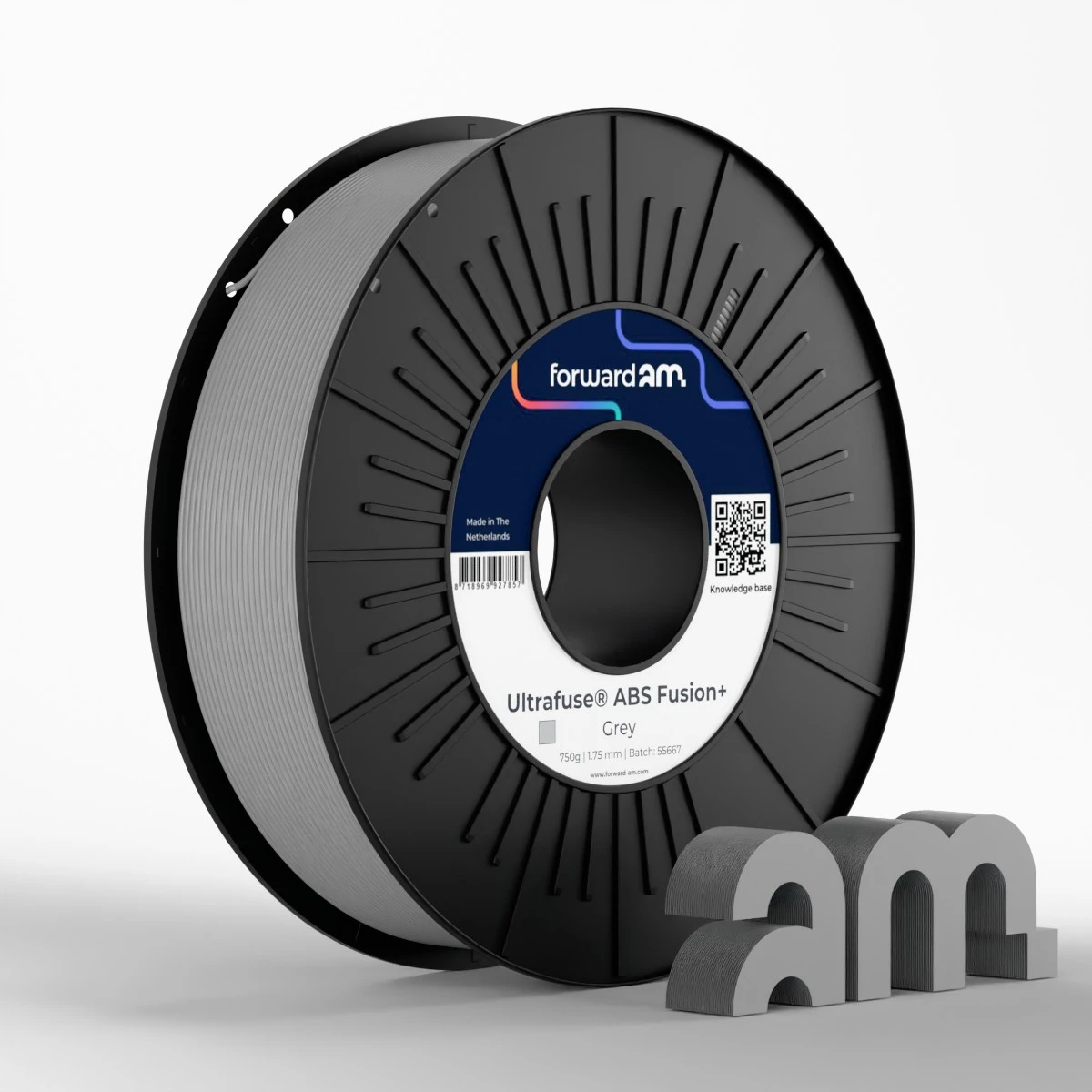

Ultrafuse® ABS Fusion+
Ultrafuse® ABS Fusion+ is an easy-to-print engineering material and enables a much more efficient printing process.
Benefits at a Glance
- Easy to print
- Direct printing on heated glass or print bed surfaces
Ultrafuse® PA
Ultrafuse PA key features are the high strength and high modulus. Furthermore, Ultrafuse PA shows a good thermal distortion stability.
Benefits at a Glance
- Good fatigue resistance
- High mechanical strength

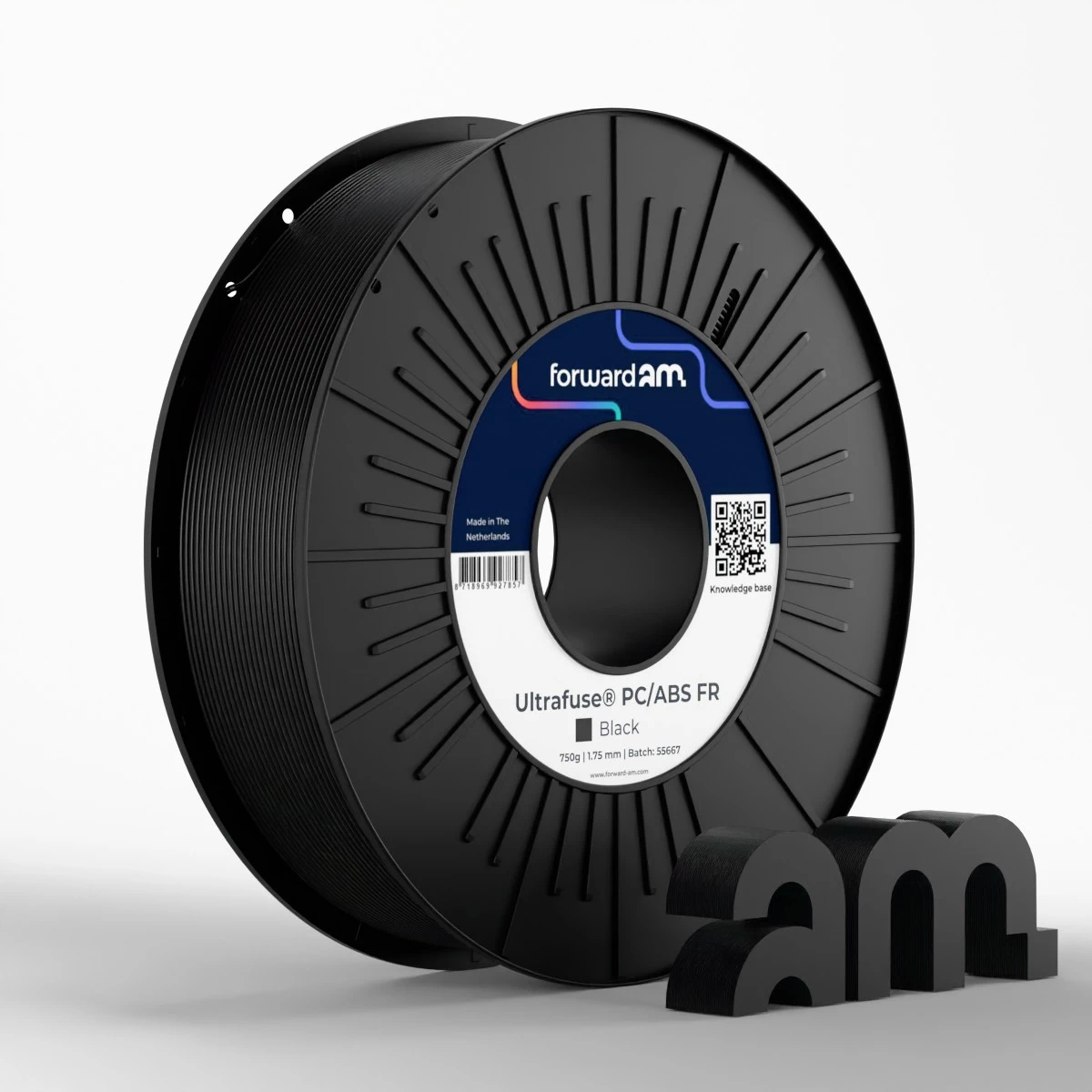

Ultrafuse® PC/ABS FR
